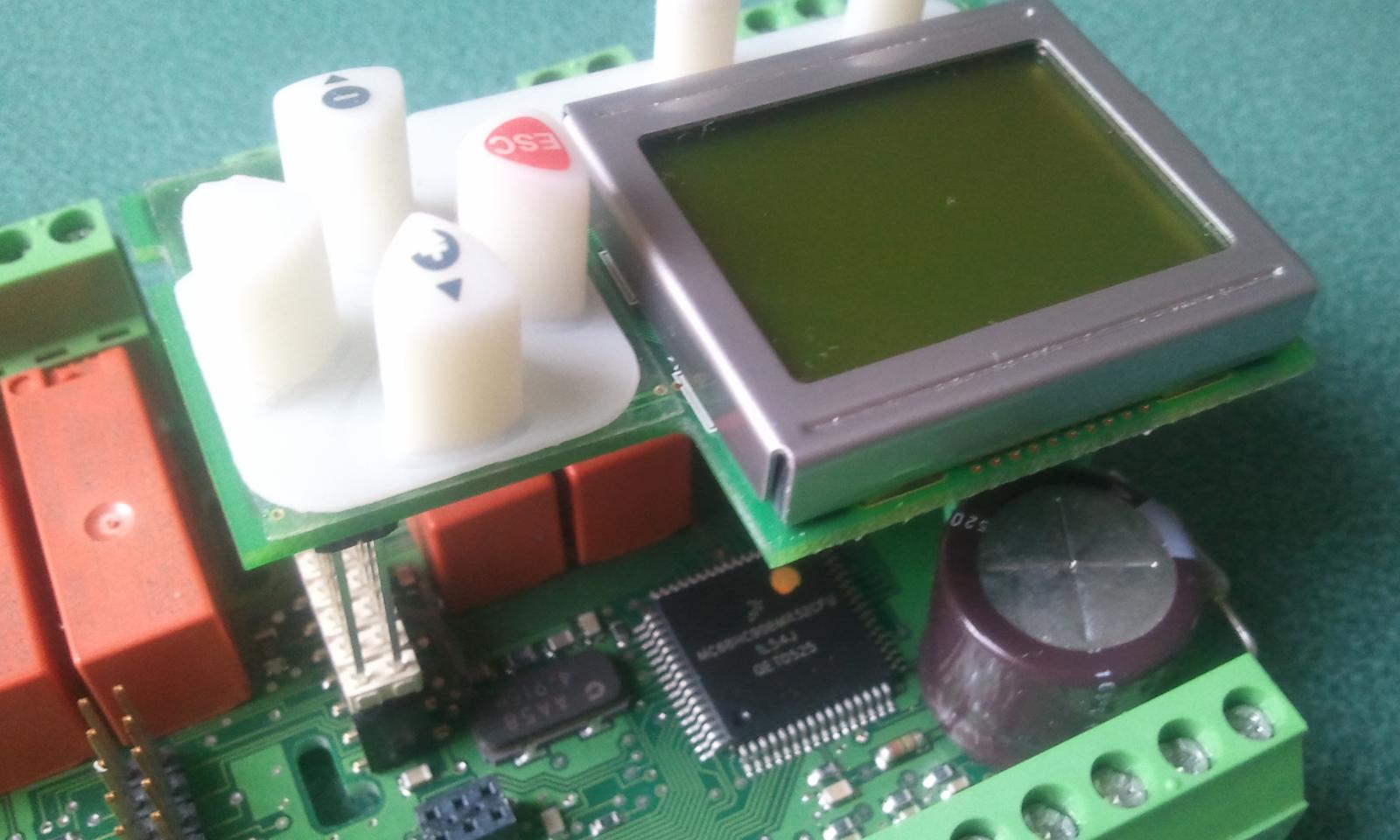

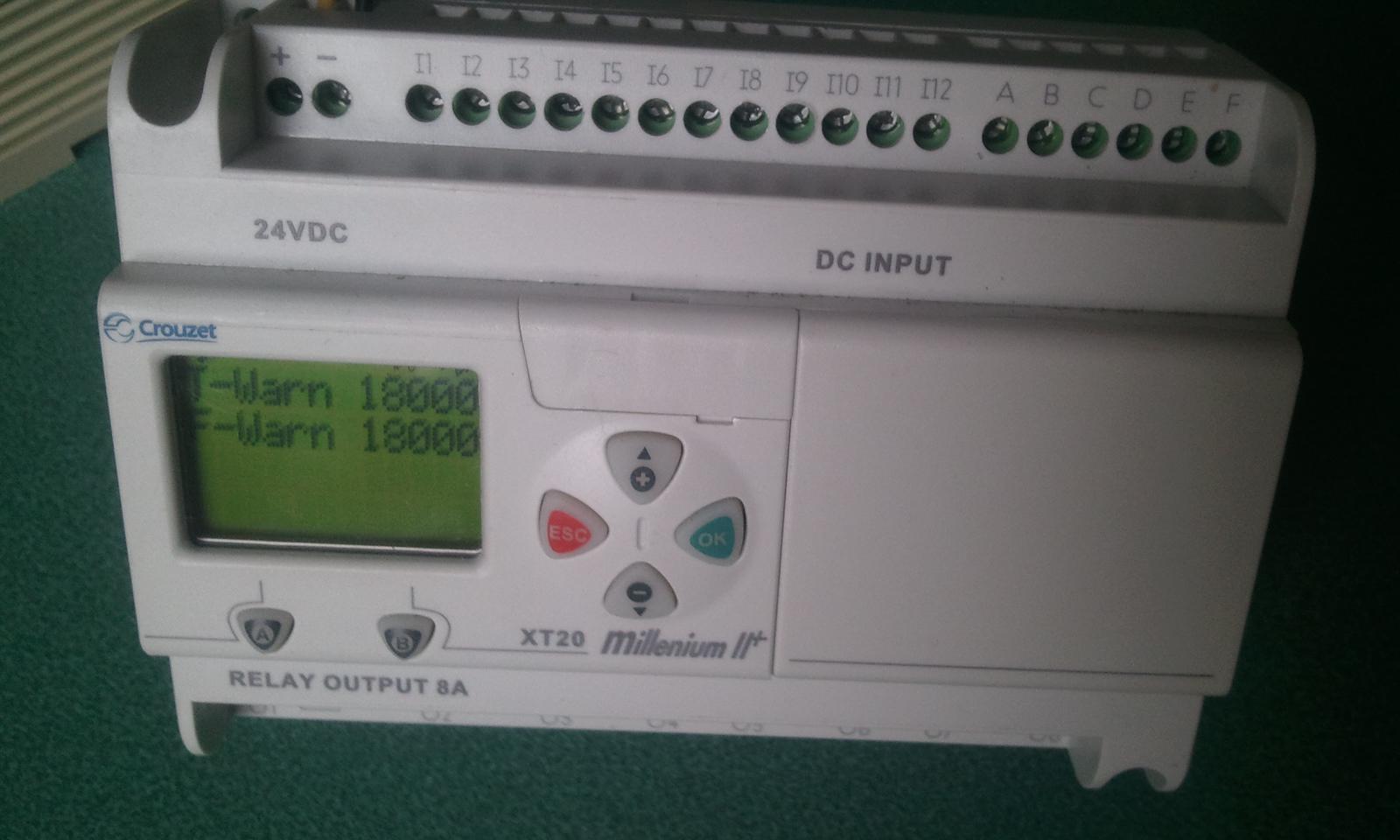

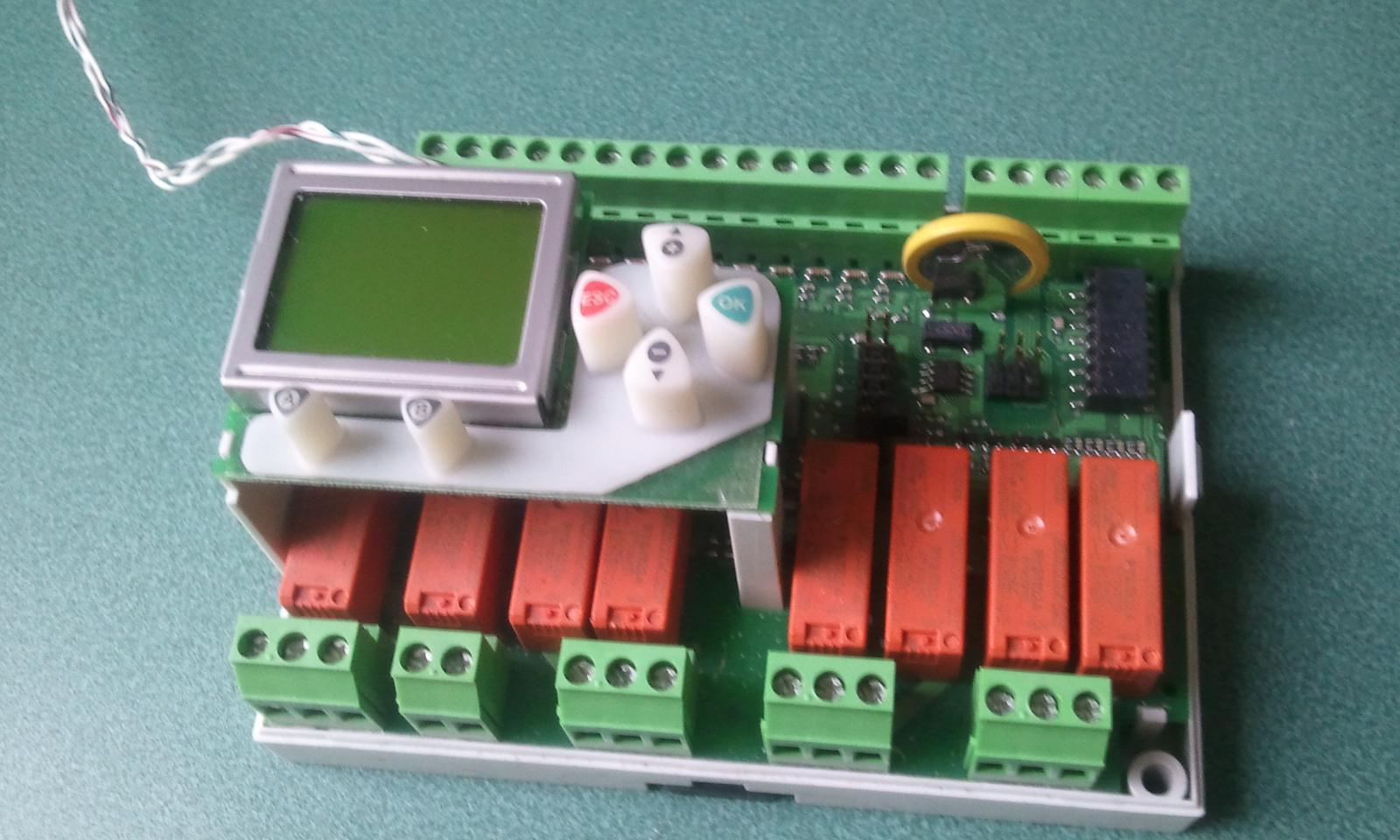

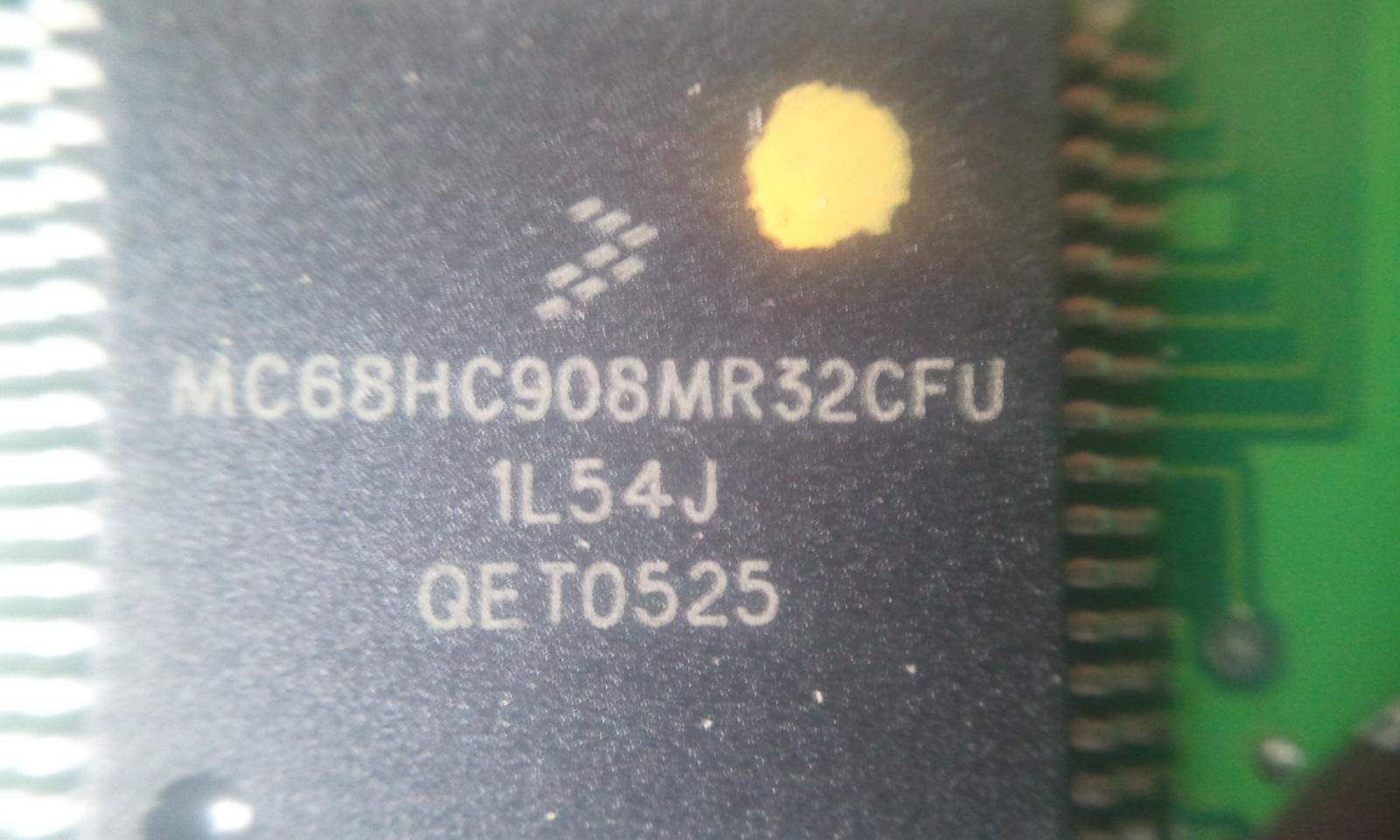

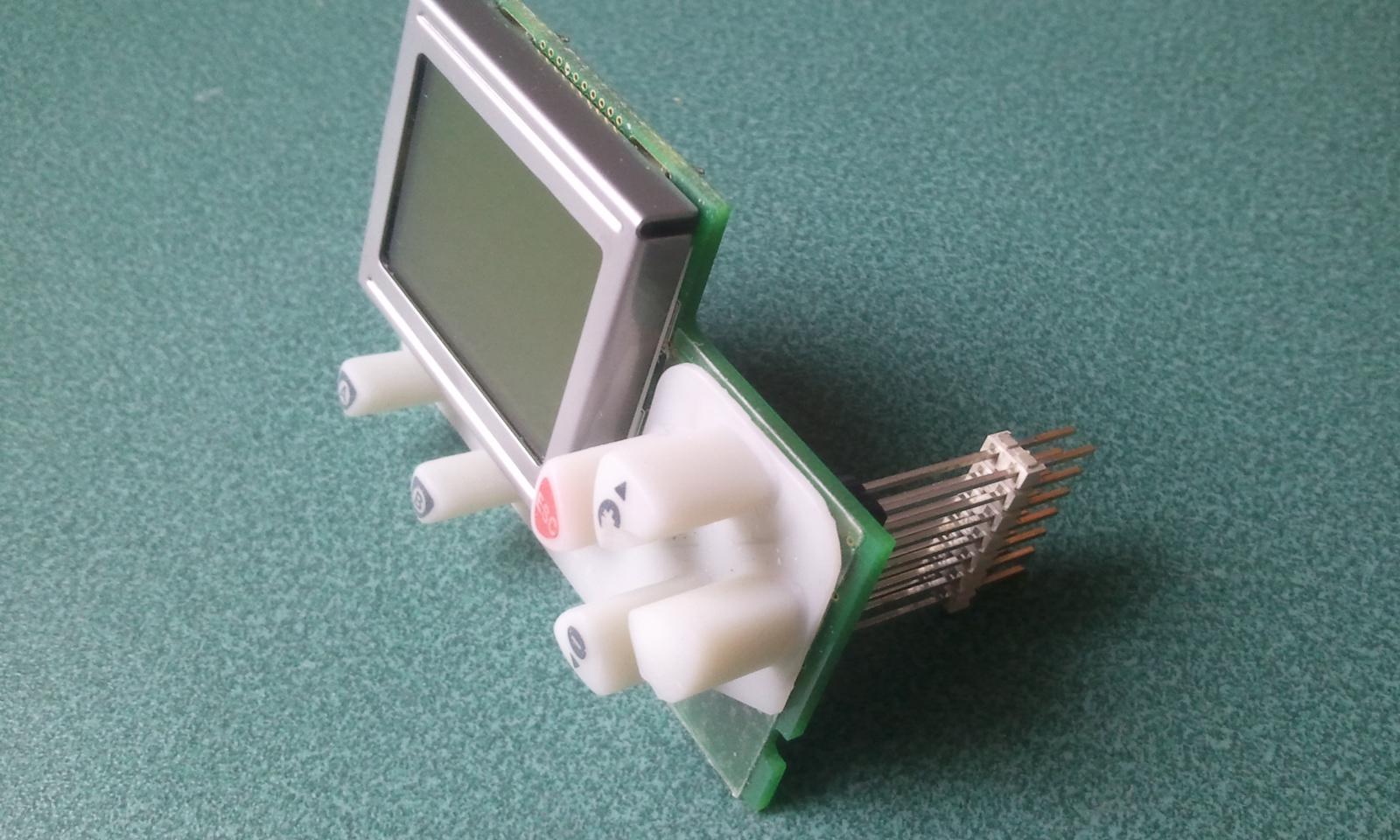

Monitor Mode Connections

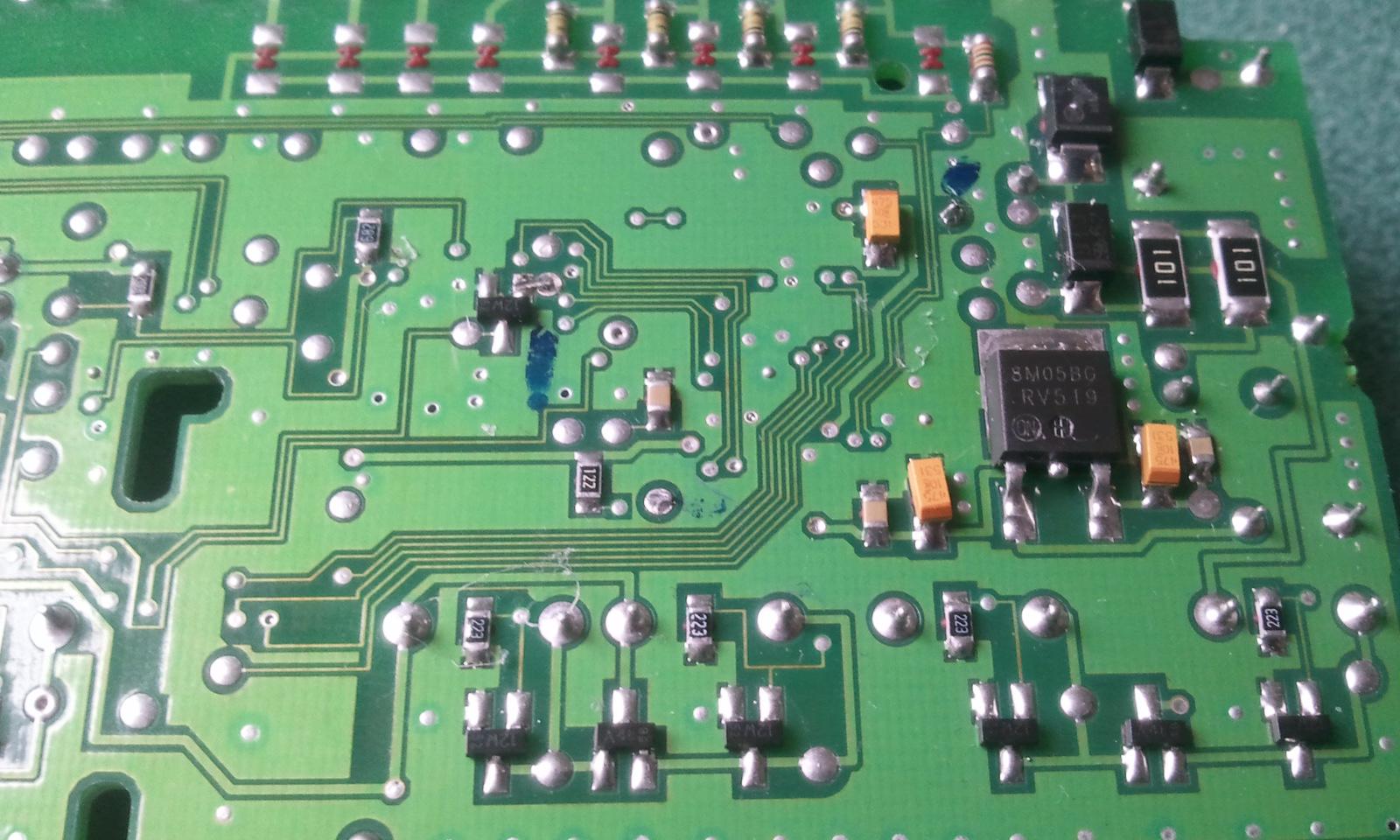

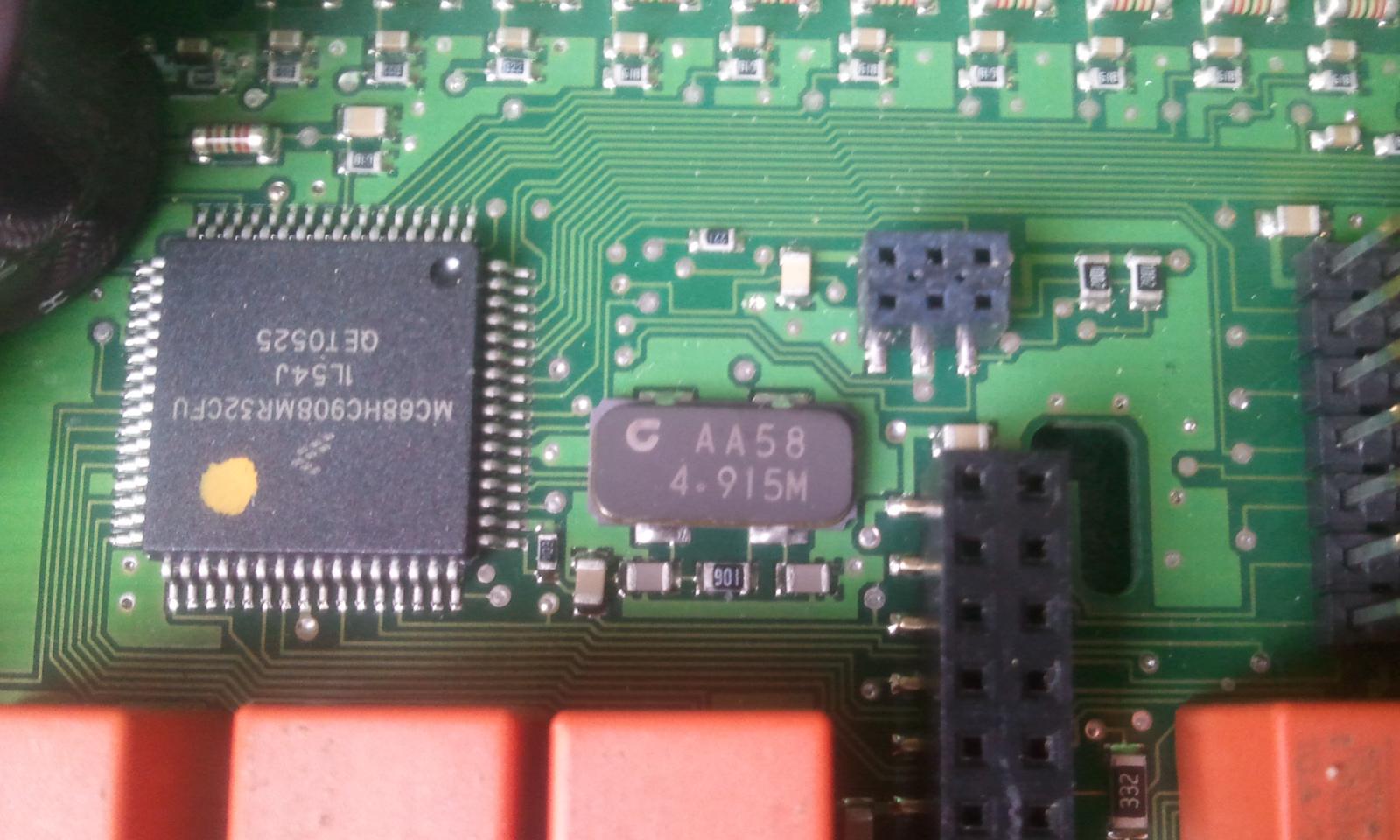

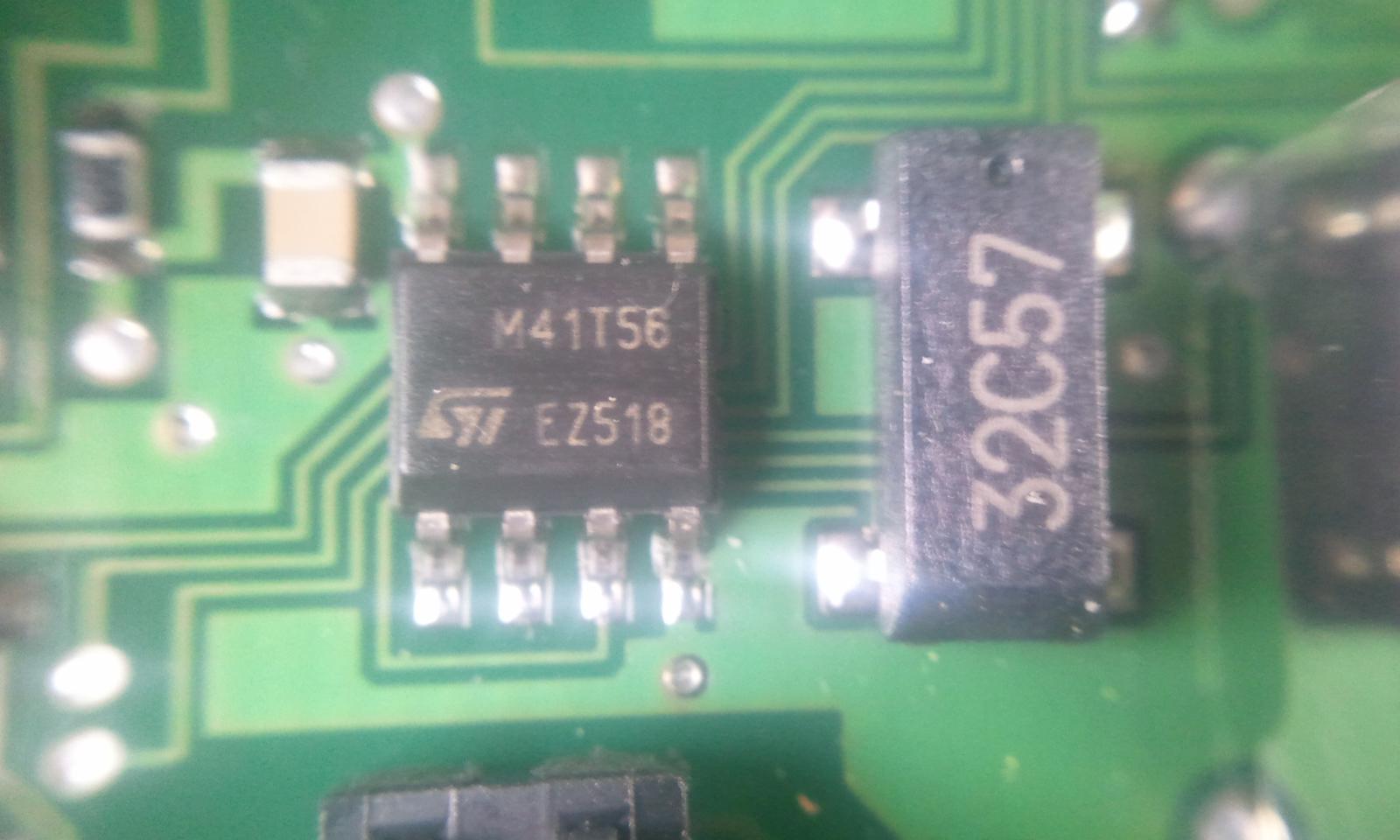

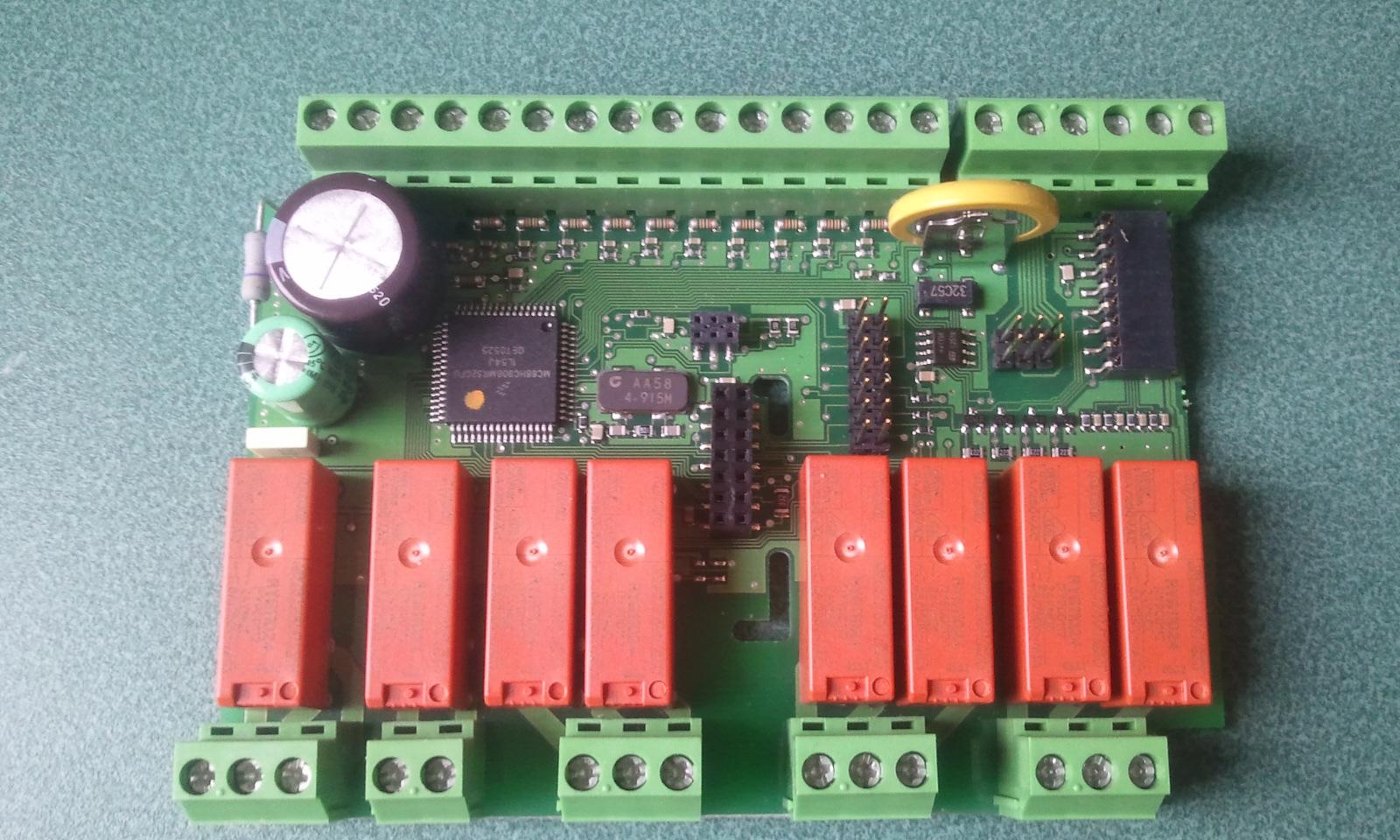

1. find soldereable pads (picture 09)
   1. right leg of transistor connected to via (blue, serial data)
   2. unconnected via right of R122 (red, Vhi//IRQ)
   3. unconnected via right of condenser (black, pull-up PTC3)
2. solder wires to PCB (pictures 10,11)

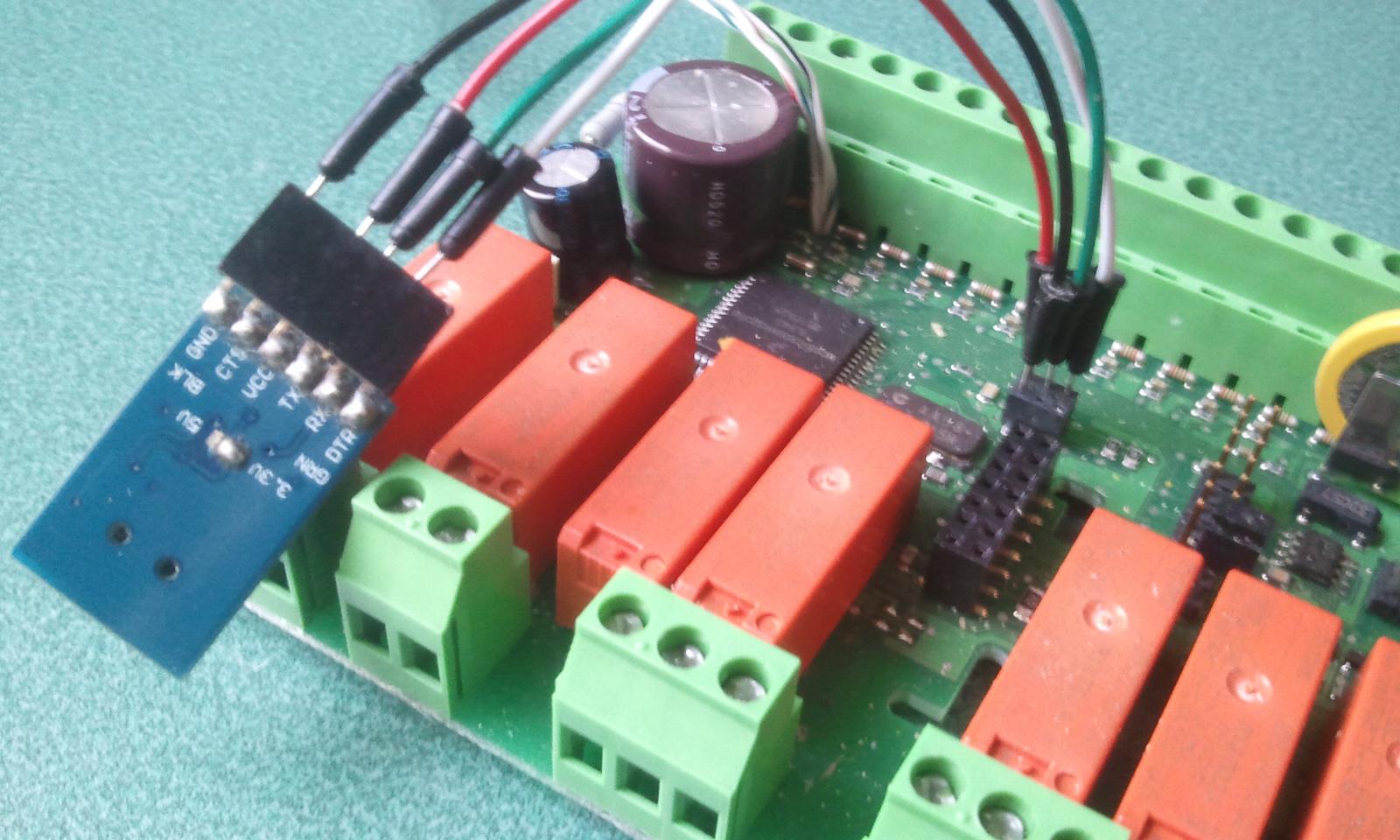

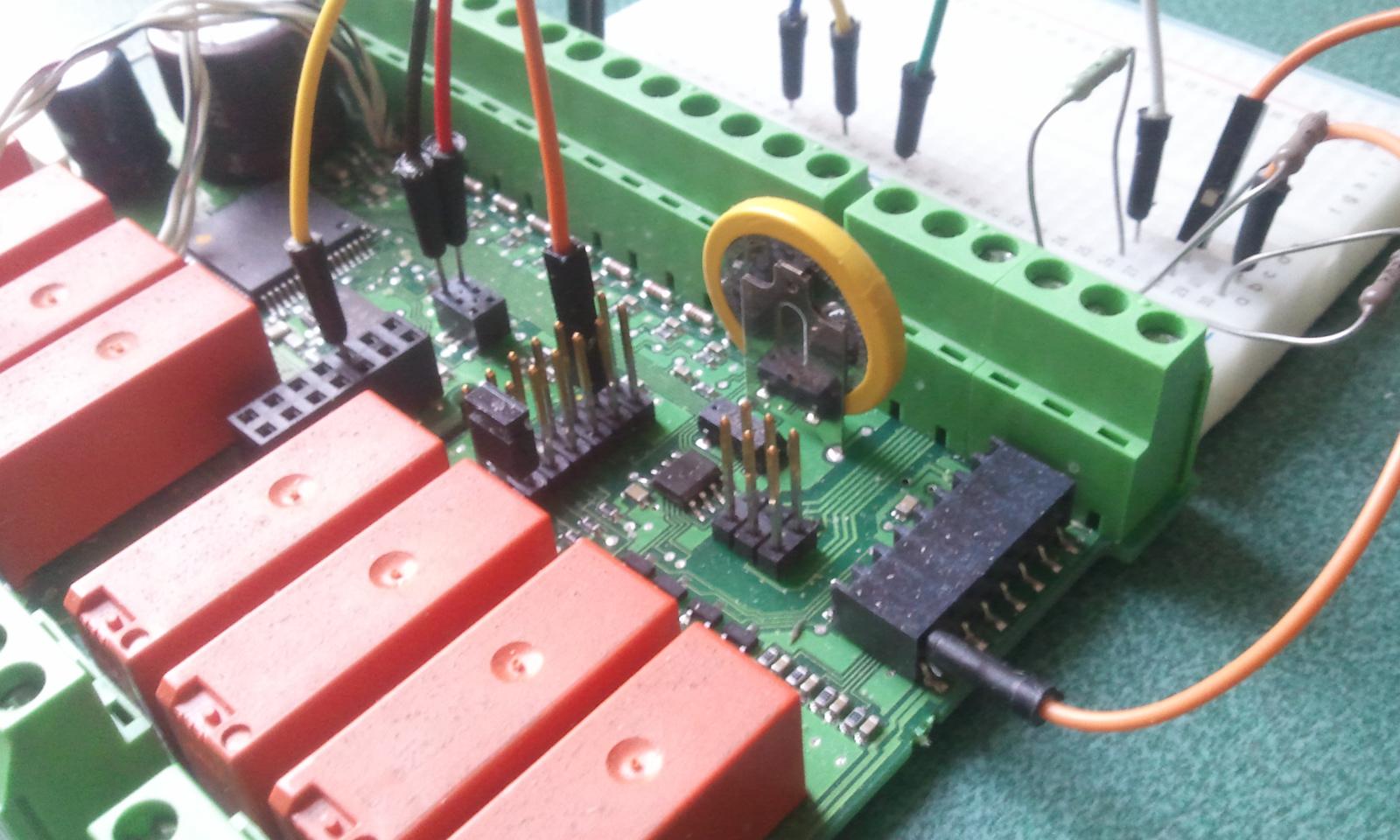

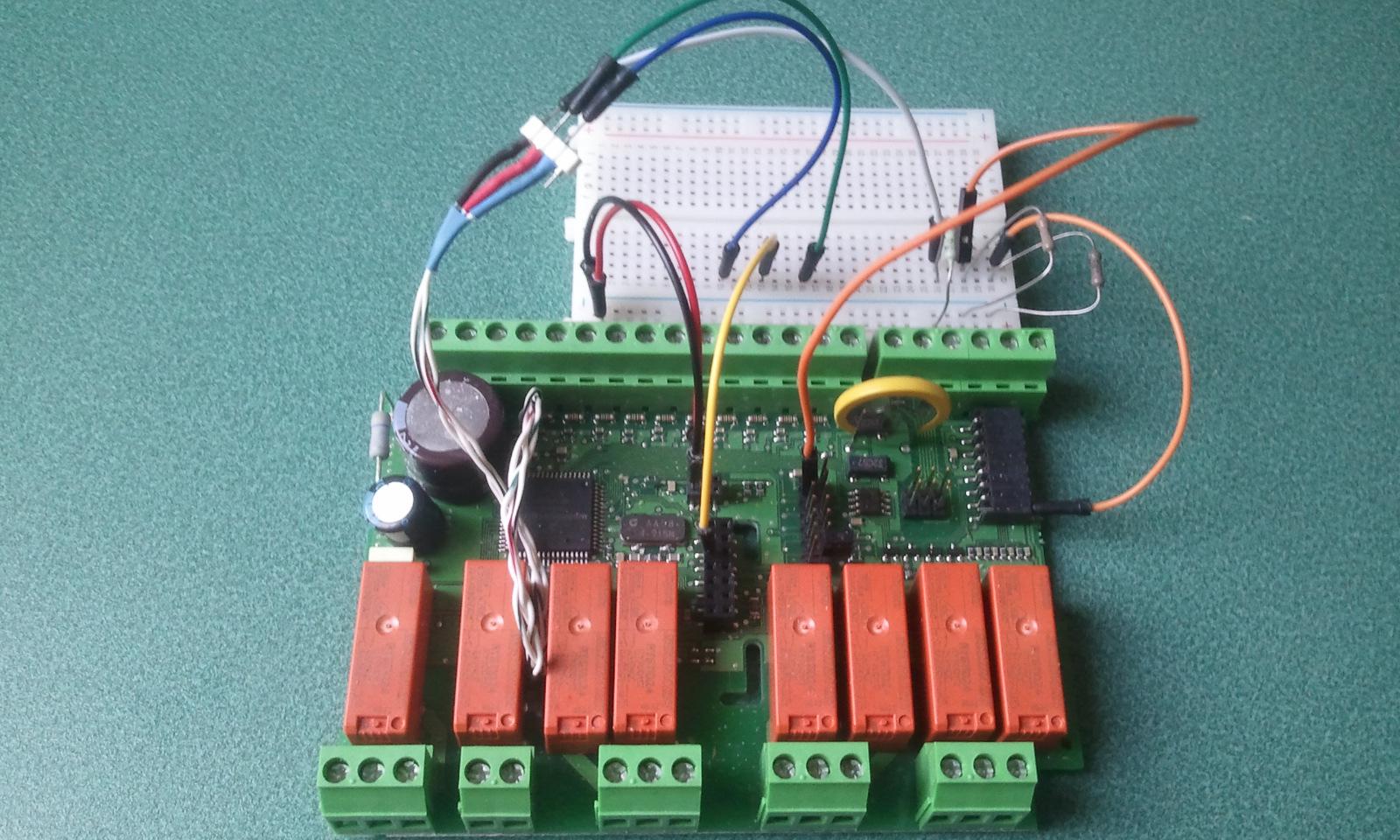

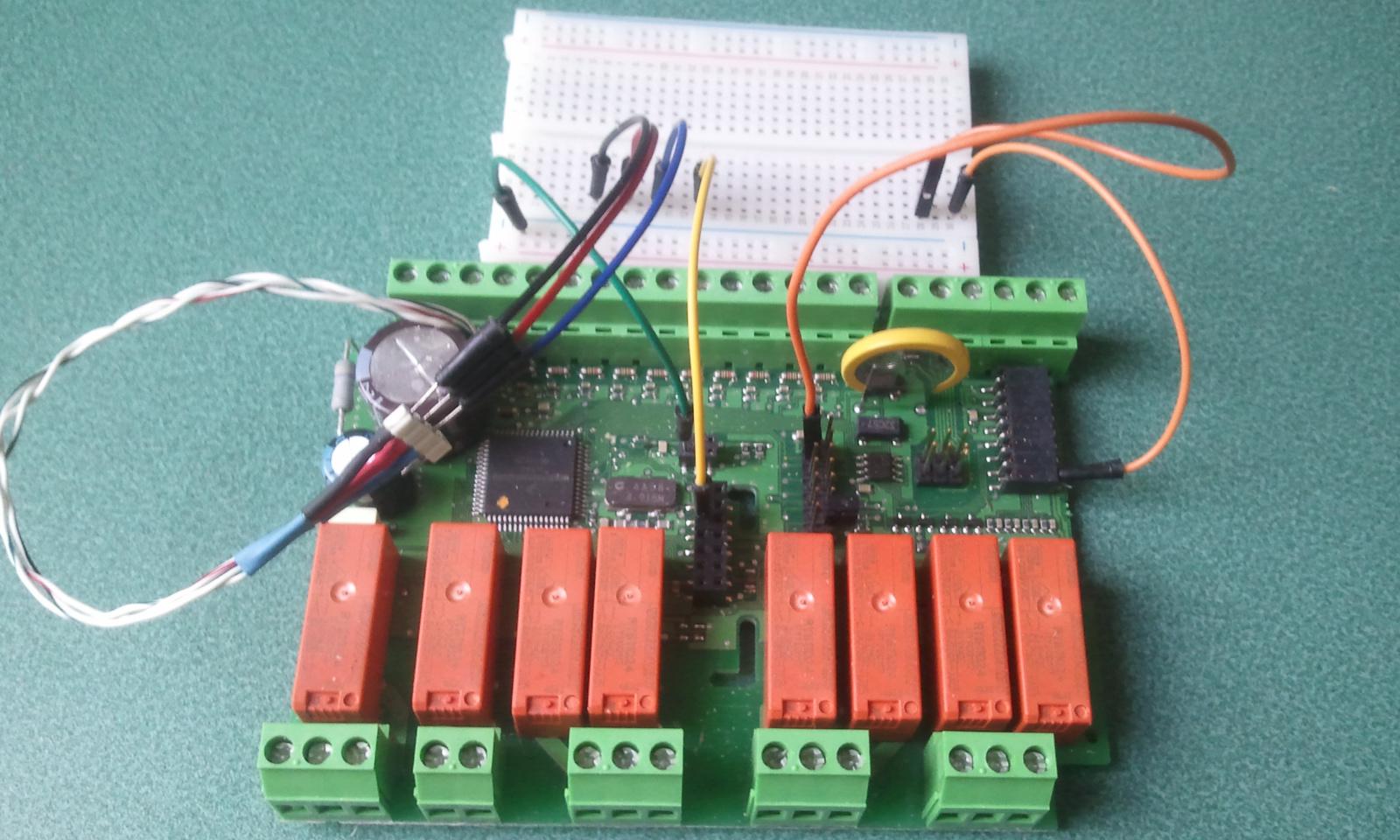

3. connect jumper wires(pictures 12,13)
   • J5.15 / pull-down PTA7
   • J2.11 / pull-down PTC2
   • J3.3 / pull-down PTC4
   • J2.6 / Reset
